Feature
- Rugged heavily ribbed Meehanite casting construction.
- 1070mm or 1270mm swing x 1750, 2250, 3250, 4250 5250mm or 6250 mm between center.
- Fagor 8055i TC control Operate in Manual, Semi-automatic or full CNC G code modes.
- Spindle power - spindle motor ratings are 30 HP or 40HP as an Options.
- Extra wide (24") induction hardened and precision ground bed ways.
- Turicte-B coated on carriage sliding ways for smooth, stick slip free movement.
- Precision hand scraped for all mating sliding surfaces and gibes.
- Hardened & Ground ball-screw with preloaded double nuts, fitted on 60° Xangular contact bearing.
- Large 155mm bore rigid spindle mounted on precision taper roller bearing for heavy cutting.
- 4 infinitely variable speed gear ranges with auto shifting for fully programmable spindle speeds.
- FAGOR AC servo axes motors and drives provided high performance.
- Portable electronic hand wheel with axis jog control allow for manual operation.
- Automatic lubrication to all sliding surfaces and axes ball-screws.
- Flood coolant system and Halogen work light are as standard.
- All electric component are built-in an enclosure cabinet and main disconnect switch.
- Wide range of options including: turrets, hydra. Chucks and steadies, C axis with 'Live' tools, chip conveyor, etc.
- Every machine before shipping is inspected by Laser calibrated and cutting and coolant testing and Undergoes a rigorous 48 hours non-stop running.
- Rugged heavily ribbed Meehanite casting construction.

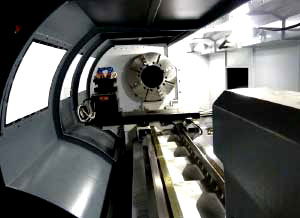

Rigid construction
+++Geared Headstock
+++The Spindle & gears are made of CR-MO alloy steel which are carburizing & precisely ground, forced lubricating & oil bathed combined in headstock which can be prolonged servicing life
+++Rugged heavily construction
+++Rugged heavily ribbed cast iron bed constructed, with hardened and ground Turcite-coated bed and saddle guideways for high accuracy and durability.
Specification

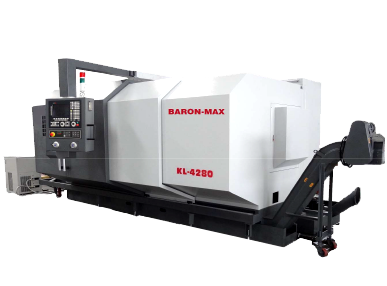

KL-4260 / KL-4280 / KL-42120 / KL-42160 / KL-42200 / KL-42240
CAPACITY |
|||
| Swing over bed | 42" (1070mm) | ||
| Center height | 550 mm (21.65") | ||
| Swing over cross slide | 750mm (29.52") | ||
| Swing in gap (Option) | 1570mm | ||
| Length of gap | 570 mm | ||
| Distance between center | 68.9" (1750mm) ~ 246" (6250mm) in 40" increments | ||
WORKPIECE WEIGHTS |
|||
| Max. weight at headstock | 2,000 kg | ||
| Between centers unsupported | 5,000 kg | ||
| Between center w/1 steady rest | 6,500 kg | ||
| Between center w/2 steady rest | 7,000 kg | ||
| Small closed steady rest (Opt.) | Ø150 - Ø 380 mm | ||
| Large closed steady rest (Opt.) | Ø 300 - Ø 550 mm or Ø 550 - Ø 800 mm | ||
HEADSTOCK |
|||
| Spindle bore | 155 mm: std. | Ø230 mm ,Opt | |
| Spindle center | Ø155mm(6") : MT#5 ; Ø250mm/Ø305mm / Ø410mm : MT#6 | ||
| Spindle Nose | A2?11 (Std.) | A2?15 (Opt) | |
| Spindle range | 3 | ||
| Spindle speed (rpm) |
1-range | 5 - 15 | 4 - 13 |
| 2-range | 16 - 120 | 14 - 105 | |
| 3?range | 121 - 610 | 106 - 500 | |
BALLSCREW |
|||
| Z axis ball screw | Ø80 x P20 (Planetary gearbox reducer 1:10) | ||
| X axis ball screw | Ø40 x P8 | ||
CARRIAGE |
|||
| Cross slide width | 340mm | ||
| Cross slide travel | 650mm | ||
BED |
|||
| Bed width | 24" (610mm) | ||
| Z axis travel | 1750 / 2250 / 3250 / 4250 / 5250 / 6250 mm | ||
TAILSTOCK |
|||
| Quill taper | MT#6 | ||
| Quill diameter | 165 mm | ||
| Quill travel | 300 mm | ||
ACCURACY |
|||
| Positioning accuracy | ± 0.01mm / 300 mm | ||
| Repeatability accuracy | ± 0.005 mm | ||
| Main spindle motor | 30HP (22.5kw) - Standard, 40HP(30kw) - Option | ||
| Coolant pump | 1/2 HP - Standard, 1-1/2 HP(High pressure - option) | ||
| Power required | 40 KVA | ||
| Machine weight (KGS) | 10500 /11300 /12600 / 14200 / 15800/17500 | ||
* The above specifications subject to change without prior notice.
