Product Features
Superior construction, features and performance
Higher Efficiency, Rigid Structure, Excellent and Stable Accuracy At a Very Affordable Pricing
Mechanical accuracy is based on the flatness less than 5 μm in 1 M²
High rigidity 4 Box Guide ways on base, X Y Z axes Hardened Box Ways
High rigid Cartridge Belt Drive Spind
Largest and rigidity column
the ballscrews and linear ways are lubricated automatically by timer controlled oil injection
24 Tools Swing Arm type ATC
A screw type auger is provided as a standard feature
Double-anchored ballscrews with twin pre-loaded ball nut

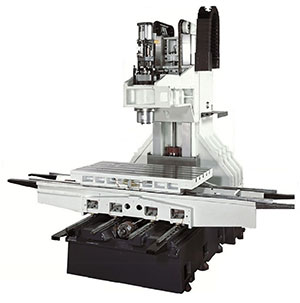

Rigid construction
Specification

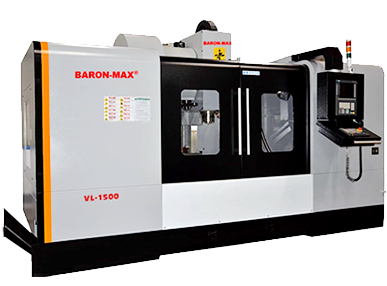

VL-1050, VL-1300, VL-1500
| VL-1050 | VL-1300 | VL-1500 |
||
| MACHINING ENVELOPE | ||||
| Axis Travel | X | 1050 mm | 1300 mm | 1500 mm |
| Y | 600 mm | 750 mm | 750 mm | |
| Z | 600 mm | 650 mm | 650 mm | |
| Spindle nose to table | 100~700 mm | 100~750 mm | 100~750 mm | |
| Spindle center to column surface | 640 mm | 750 mm | 750 mm | |
| Table | ||||
| Table size (mm) | 1100*600 | 1400*650 | 1700*650 | |
| Table loading capacity | 1000 kg | 1300 kg | 1300 kg | |
| T-slot configuration | 18 mm*5T | 18 mm*5T | 18 mmx5T | |
| Spindle | ||||
| Taper | BT# 40(STD.),CT#40 or DIN-69871A (Opt.), BT#50 (opt.) for VL-1500 | |||
CNC Control System |
Siemens 828d, or FAGOR 8055i FL | |||
| Spindle speed | 8,000 rpm (FAGOR 8055i FL MC), 10,000 rpm (Siemens 828D) | |||
| Coolant through spindle | Available. Complies with DIN 69871 from B tool holder | |||
| Main motor (con/30 min KW) | 12/16 KW, (Siemens), 11/15 KW(Fagor) | |||
| Axes Transmission | ||||
| X Y Z Ball screws | X-Y-Z:O40*P10*C3 | X: O50 x P10 x C3 Y-Z: O40 x P10 x C3 |
||
| X Y Z Rapid feed | X-Y axes : 24 m/min, Z axis: 20 m/min | |||
| X Y Z feed rate | 10 m/min | |||
| Feed Motor torque (XYZ) Nm | 16 / 16 / 16 Nm (Siemens) 16.5 / 16.5 / 23.5 Nm (Fagor) |
|||
| Accuracy | ||||
| Positioning | ± 0.005 (± 0.0002") | |||
| Positioning repeatability | ± 0.003 mm (± 0.0001") | |||
| Automatic Toolchanger | ||||
| Number of Tools (ATC) | 20-station Carousel type (Standard), 24 tools Arm Type.(Optional) | |||
| Tool selection | By address code, Random / bi-directional rotation | |||
| Pull stud | MAS 403-P40T (45°),CT40 (45°) or DIN 69872 B (45°) | P50T (45°)-Opt | ||
| Max. Tool diameter | O 80 mm (Carousel type), O 76 mm (Arm type), | 240 mm - #50 | ||
| Max. Tool weight | 6 KGs | 15 kgs - #50 | ||
| Max. Tool length | 300 mm (12") | 300 mm (12") | ||
| Tool change time (tool to tool) | 6 sec for carousel type, 2.5 sec for arm type(Opt.) | 6 sec | ||
| Coolant and Chip Management | ||||
| Swarf removal | Chip auger (Standard), Chain type Chip Conveyor (Option) | |||
| Coolant Tank Capacity | 260 L | 320 L | 320 L | |
| Wash Down | Option | Option | Option | |
| Wash Gun | Standard | Standard | Standard | |
| Air Gun | Standard | Standard | Standard | |
| Cutter air blast | Standard | Standard | Standard | |
| Coolant Through Spindle (20/50 bar) | Option | Option | Option | |
| Guide Ways | ||||
| Way Construction (X, Y, Z) | X -Y: Linear Guide ways, Z: box-ways | |||
| Way Size (X, Y, Z) - mm | X:#35, Y: #35, Z: #35 |
X:#30, Y: #25, Z: Box-ways |
X:#45, Y: #35, Z: Box-ways |
|
| Number of Linear Guides: X axis | 2 Guides: X (Roll) | 2 Guides: X (Ball) | 2 Guides: X (Ball) | |
| Number of Linear Guides: Y axis | 2 Guides: Y (Roll) | 4 Guides: Y (Ball) | 4 Guides: Y (Ball) | |
| Number of Linear Guides: Z axis | 2 Guides: Z (Roll) | Box way : Z | Box way : Z | |
| Number of Guide Trucks: X, Y axis | X axis: 4, Y axis: 8 |
X axis: 6, Y axis: 8 |
||
| Number of Guide Trucks: Z axis | 2 Box ways | 2 Box ways | ||
| Machine Dimensions (W x D) (cm) | 270*230 cm | 360*230 | 230*385 | |
| Machine height | 310 cm | 310 cm | 310 cm | |
| Coolant pump motor | 1-1/2 HP | |||
| Air required | 7 kg/cm (85 psi) | |||
| Machine weight (Approx.) | 6,500 kg | 7,500 kg | 8,500 kg | |
* Specifications are subject to change without notice
