Feature
- Extra wide bed with flat way and Vee-way, induction hardened and precision ground to HRC 50.
- Turcite-B anti-friction coating on saddle and cross slide for improved accuracy & wear
- Precision hand scraped for all mating sliding surfaces and gibes.
- Hardened & Ground ball-screw with preloaded double nuts, fitted on 60°Xangular contact bearing.
- Powerful AC Vector spindle drive, provide high power for Constant Surface Speed Cutting.
- Large bore heavy duty spindle mounted on precision taper roller bearing for heavy cutting.
- Headstock with three automatic change-over speed-ranges with fully programmable spindle speeds.
- Heavy duty manual tail-stock with safety switch.
- AC Servo axes motors and drives provided high Performance.
- Dual electronic hand wheels allowing unrestricted manual operation.
- Automatic lubrication to all sliding surfaces and axes ball-screws.
- Flood coolant system and Halogen work light are as standard.
- All electric component are built-in an enclosure cabinet and main disconnect switch.
- Fully enclosed guarding with interlocked sliding doors access to CE standard.
- Every machine before shipping is inspected by Laser calibrated and cutting & coolant Testing and Undergoes a rigorous 30 hours non-stop running.
- Integrated FAGOR 8055i TC Control with 11" Color TFT display. Simple as a DRO, Powerful as a CNC,
Rigid construction
Specification

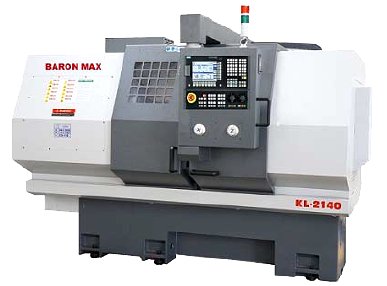

KL-2140 / KL-2160 / KL-2180
KL-2140 |
KL-2160 |
KL-2180 |
||
| CAPACITY | ||||
| Height of centers | 265 mm (10.5") | |||
| Swing over bed | 530 mm (21") | |||
| Swing over cross slide | 310 mm (12") | |||
| Distance between center | 1000 mm | 1500 mm | 2000 mm | |
| Width of bed | 350 mm (14") | |||
| SADDLE | ||||
| Longitudinal travel (Z) | 750 mm | 1250mm | 1750mm | |
| Cross slide travel (X) | 300 mm (11.8") | |||
| HEADSTOCK | ||||
| Spindle Nose | ISO D1-8, ISO D1-11 (Opt.) | |||
| Spindle bored (standard) | Ø 85 mm (3-1/8") | |||
| Spindle bored (optional) | Ø 105 mm (4") | |||
| Taper of S/Nose & center | MT No.6 x No.4 for D1-6, MT No.7 x No.5 for D1-8 | |||
| 3-Jaw scroll chuck (Option) | Ø 200 mm (8") for D1-6, Ø 250 mm (10") for D1-8 | |||
| Hydraulic Power chuck (Opt.) | Ø 200 mm (8") for D1-6, Ø 250 mm (10") for D1-8 | |||
| Bar capacity (Power chuck) | Ø 45 mm for D1-6 of 8" chuck, Ø 75 mm for D1-8 of 10" chuck, Ø 91 mm for A1-11 of Ø12" chuck | |||
| Range of spindle speeds | 3 Rang Gears Auto Shifting | |||
| Spindle speed (variable) | D1-8: 10" Chuck H: 2000 - 441 rpm M: 440 - 111 rpm L : 110 - 25 rpm |
|||
| INDEXING TURRET (OPTIONAL) | ||||
| Turret tool station | 8 station | |||
| Standard O.D. tool size | 25 mm (1") | |||
| I.D. tool size (Max.) | 25 mm (1") | |||
| TAILSTOCK | ||||
| Tailstock quill travel | 180 mm (7.08") | |||
| Tailstock quill diameter | 75 mm (3") | |||
| Tailstock quill taper | No.5 MT | |||
| MOTOR | ||||
| Spindle drive motor | 10 HP | |||
| Feed Motor torque (Z-X) | 12 Nm (Z) / 6 Nm (X) Nm | |||
| Coolant pump | 1/8 HP, (1/4 HP: up to 2000 mm center distance) | |||
| Rapid traverse (Z-X) | 8,000 mm/min (315 ips) | |||
| Cutting federate (Z-X) | 1-4000 mm/min (0-157 ips) | |||
| ACCURACY | ||||
| Positioning | ±0.010/300 mm (±0.0004/12") | |||
| Positioning repeatability | ±0.005/300 mm (±0.0002/12") | |||
| Power required | 16 KVA | |||
| Approx. Machine weight (kg) | 3100 | 3400 | 3700 | |
