Feature
Product Features
Centre partition for dual load operation [option]
The machines can also equipped with a central guard to allow them to be used as a pendulum
non-stop manufacturing system. That eliminates idle time caused by loading and unloading
therefore maximizing the use of the machine whether for the production of medium-large size
batches or small lots of various pieces

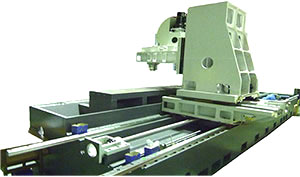

Rigid construction
Specification

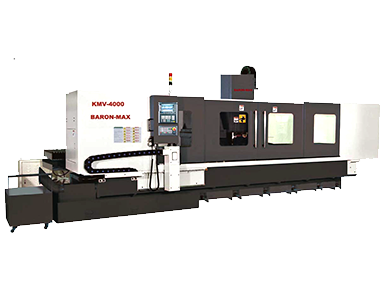

KMV-4000 / KMV-4000XP
| KMV- 4000 KMV- 4000XP |
|
| TRAVEL | |
| Longitudinal travel (X-axis) | 4000 mm |
| Cross travel (Y-axis) | 450 mm (Std), 600 mm (XP series) |
| Vertical travel (Z-axis) | 500 mm (Std), 550 mm (XP series) |
| Spindle nose to table top | 120 - 620 mm (4.7"-23.3") _ Std., 120 - 670 mm (for XP series) |
| TABLE | |
| Table size
|
4000 x 400 (Std) |
| 4000 x 550 (XP) | |
| T-slots (width x No.x patch) | 3 x 18 x 100 (Std), 5 x 18 x 100 (XP series) |
| Max. Table loading capacity | 3,000 Kg |
| SPINDLE | |
| Spindle Motor | 12/16 KW |
| Spindle speed range | 8,000 rpm (Std) / 12,000rpm or 18,000rpm (Option) |
| Spindle Taper (standard) | BT# 40(STD.), CT#40 or DIN-69871A SK40 (Opt.) |
| FEED | |
| Feed Motor torque (X-Y-Z) | 16 / 16 / 27 Nm (3.0/3.0/4.85 KW) |
| Rapid traverse (X-axis) | 10 m/min |
| Rapid traverse (Y-Z axes) | 10 m/min |
| Cutting federate (X-Y-Z) | 1 - 6,000 mm/min |
| Ball screw diameter | X-Y: 50 mm |
| Z: 40 mm | |
| Guide ways | X-Y-Z: M-45 LINEAR |
| ACCURACY | |
| Positioning | JISB6338 ±0.010/300 , VDI 3441 P0.025 |
| Positioning repeatability | <0.010 mm (<0.00004") |
| AUTOMATIC TOOL CHANGER (Disc Arm Type) | |
| No. of Tools | 24 tools (Standard) , 40 tools (Option) |
| Pull stud | MAS 403-P40T (45°) or PS-CT40 (45°), or DIN 69872 B (45°) |
| Max. Tool diameter x length | Ø80 mm x 300 mm |
| Max. Tool weight | 7 Kg |
| Tool change time | 4 sec (tool to tool) |
| GENERAL | |
| Power required | 32 KVA |
| Air required | 6 kg/cm (85 psi) |
| Machine weight (Approx) | 16,000 Kg |
* Specifications are subject to change without notice
