Feature
- Rigid cast design of machine elements
- Linear guideways on X,Z axes for fast machining
- Belt Type Chip Conveyor Standard for efficient chip remova
- Tailstock Standard
- Controller : Siemens 828D, FAGOR 8055i TC, FANUC 0i mate
- Chuck size: 6" Chuck / 6,000 rpm (8" Chuck /4,200 rpm Optional)
- Swing over bed: 450 mm
- 42mm Bar Capacity
- Maximum turning length: 300 mm
- Spindle motor: 7.5/11 kw
Rigid construction
A solid one piece casting is made from close grain Meehanite Cast Iron. The ribbing locations and wall thickness are placed in strategic locations determined by computer finite analysis. This design assures consistent accuracy's and excellent finishes. The Saddle has a 45° degree incline, Designed for easier directing chips and coolant in to the chip conveyor
Specification
EL? 52X / EL?52XL / EL?65X / EL?65XL
EL-52X |
EL-52XL |

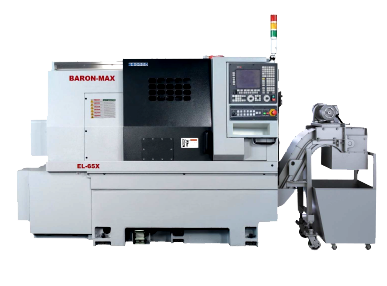

EL-65X |
EL-68XL |
|
| Machining Capacity | ||||
| Swing Over Bed | Ø510 mm | |||
| Swing Over Saddle | Ø360 mm | |||
| Max. Turning Length | 510 mm | 770 mm | 510 mm | 770 mm |
| Max. Turning Diameter | Ø360mm | |||
| Spindle | ||||
| Hyd. Chuck Diameter | 8" Inch | 10" Inch | ||
| Max. Bar Diameter | Ø52mm | Ø65mm | ||
| Spindle Nose | A2-6 type | |||
| Spindle Bearing Dia. | 100mm | 110mm | ||
| Spindle Motor 100% / 50% | 7.5/11 KW | 11/15 KW | ||
| Spindle Speed | 4500rpm | 3500rpm | ||
| Turret | ||||
| Turret Type | Hydraulic / Servo (Opt.) | |||
| Tool Number | 10Station | |||
| Tool Shank (O.D) | □25 | |||
| Tool Holder Bore Dia. (I.D) | Ø40 | |||
| Index time next tool | 0.3sec | |||
| Travels | ||||
| X-axis Travel | 180 + 20mm | |||
| Z- Axis Travel | 510mm | 770mm | 510mm | 770mm |
| Feed | ||||
| Rapid Traverse Rate X-Axis | 30m/min | |||
| Rapid Traverse Rate Z-axis | 30m/min | |||
| Maximum Cutting Feedrate | 6m/min | |||
| Accuracies | ||||
| Positioning | ± 0.003 mm (± .0002")Mm | |||
| Repeatability | ± 0.002 mm (± .0001")Mm | |||
| Turret | ± 2 arc sec | |||
| Motor | ||||
| Servo motor in X / Z-axis | 1.8 | |||
| Hydraulic motor | 2HP | |||
| Coolant pump | 1HP | |||
| Tailstock | ||||
| Quilt Diameter | Ø80mm | |||
| Tailstock quill taper | No.4 MT type | |||
| Tailstock travel | 510 | 770 | 510 | 770 |
| Quill travel | 120mm | |||
| control type | Hydraulic / by M-Code | |||
| Overview | ||||
| X- Z Axis Slideway | Linear Guide Ways type | |||
| Connected Load Power Consumption | 25 KVA | |||
| Coolant Tank Capacity | 160liter | |||
| Floor Space | 245*165cm | 265*165cm | 245*165cm | 265*165cm |
| Machine Weight | 3500 kg | 3600 kg | 3500 kg | 3600 kg |
Specifications are subject to change without notice
