Feature
Product Features
![](images/VL_f01.jpg)
![](images/VL_f02.jpg)
Mechanical accuracy is based on the flatness less than 5 μm in 1 M²
High rigidity 4 Box Guide ways on base, X Y Z axes Hardened Box Ways
![](images/VB_f03.jpg)
High rigid Cartridge Belt Drive Spind
![](images/VB_f04.jpg)
Largest and rigidity column
![](images/VB_f05.jpg)
the ballscrews and linear ways are lubricated automatically by timer controlled oil injection
![](images/VB_f06.jpg)
24 Tools Swing Arm type ATC
![](images/VB_f07.jpg)
A screw type auger is provided as a standard feature
![](images/VB_f08.jpg)
Double-anchored ballscrews with twin pre-loaded ball nut
Rigid construction
![](images/VL_R01.jpg)
Specification

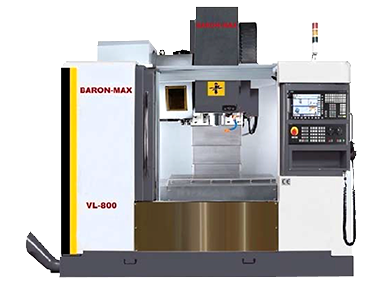

VL-600, VL-800, VL-1020
VL-600 |
VL-800 |
VL-1020 |
||
MACHINING ENVELOPE | ||||
Axis Travel | X | 600 mm | 800 mm | 1020 mm |
Y | 500 mm | 500 mm | 600 mm | |
Z | 500 mm | 500 mm | 600 mm | |
Spindle nose to table | 100~600 mm | 100~700 mm | ||
Spindle center to column surface | 550 mm | 640 mm | ||
Table | ||||
Table size (mm) | 450*700 | 450*900 | 1120*600 | |
Table loading capacity | 450 kg | 1000 kg | ||
T-slot configuration | 16 mm*4T | 18 mm*5T | ||
Spindle | ||||
Taper | BT# 40(STD.),CT#40 or DIN-69871A (Opt.), BT#50 (opt.) for VL-1500 | |||
CNC Control System |
Siemens 828d, or FAGOR 8055i FL | |||
Spindle speed | 8,000 rpm (FAGOR 8055i FL MC), 10,000 rpm (Siemens 828D) | |||
Coolant through spindle | Available. Complies with DIN 69871 from B tool holder | |||
Main motor (con/30 min KW) | 7.5/11 KW, (Std) | 12/16 KW, (Siemens), 11/15 KW(Fagor) | ||
Axes Transmission | ||||
X Y Z Ball screws | X-Y-Z: O32*P10*C3 |
X-Y-Z:O40*P10*C3 | ||
X Y Z Rapid feed | X-Y-Z axes: 30 m/min | |||
X Y Z feed rate | 10 m/min | 10 m/min | ||
Feed Motor torque (XYZ) Nm | 12 / 12 / 16 Nm 11.5 / 11.5 / 16.5 Nm |
16 / 16 / 16 Nm (Siemens) 16.5 / 16.5 / 23.5 Nm (Fagor) |
||
Accuracy | ||||
Positioning | ± 0.005 (± 0.0002") | |||
Positioning repeatability | ± 0.003 mm (± 0.0001") | |||
Automatic Toolchanger | ||||
Number of Tools (ATC) | 20-station Carousel type (Standard), 24 tools Arm Type.(Optional) | |||
Tool selection | By address code, Random / bi-directional rotation | |||
Pull stud | MAS 403-P40T (45°),CT40 (45°) or DIN 69872 B (45°) | |||
Max. Tool diameter | O 80 mm (Carousel type), O 76 mm (Arm type), | |||
Max. Tool weight | 6 KGs | |||
Max. Tool length | 300 mm (12") | |||
Tool change time (tool to tool) | 6 sec for carousel type, 2.5 sec for arm type(Opt.) | |||
Coolant and Chip Management | ||||
Swarf removal | Chip auger (Standard), Chain type Chip Conveyor (Option) | |||
Coolant Tank Capacity | 200 L | 200 L | 260 L | |
Wash Down | Option | Option | Option | |
Wash Gun | Standard | Standard | Standard | |
Air Gun | Standard | Standard | Standard | |
Cutter air blast | Standard | Standard | Standard | |
Coolant Through Spindle (20/50 bar) | Option | Option | Option | |
Guide Ways | ||||
Way Construction (X, Y, Z) | X-Y-Z Linear Guide ways | |||
Way Size (X, Y, Z) ? mm | X:#30, Y: #30, Z: #35 |
X:#35, Y: #35, Z: #35 |
||
Number of Linear Guides: X axis | 2 Guides: X (Ball) | 2 Guides: X (Roll) | ||
Number of Linear Guides: Y axis | 2 Guides: Y (Ball) | 2 Guides: Y (Roll) | ||
Number of Linear Guides: Z axis | 2 Guides: Z (Ball) | 2 Guides: Z (Roll) | ||
Number of Guide Trucks: X, Y axis | X axis: 4, Y axis: 4 |
|||
Number of Guide Trucks: Z axis | 4 | |||
Machine Dimensions (W x D) (cm) | 260 cm*210 cm |
270*230 cm | ||
Machine height | 270 cm | 310 cm | ||
Coolant pump motor | 1 HP | 1?1/2 HP | ||
Air required | 7 kg/cm (85 psi) | |||
Machine weight (Approx.) | 3550 kg | 3850 kg | 6,000 kg |
* Specifications are subject to change without notice
