Feature

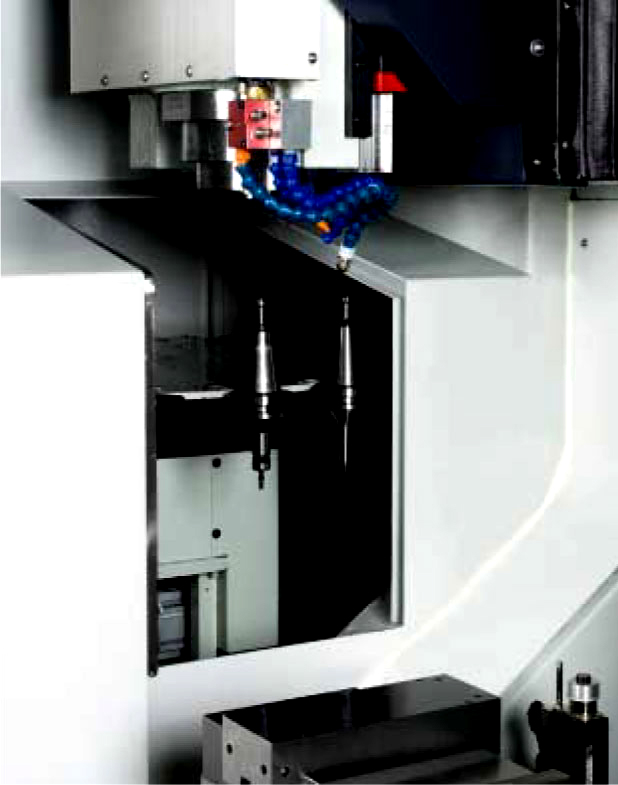

Automatic Tool Changer Disc-type Magazine
- The automatic tool change system employs a fixed disc-type magazine.
- Tool loading capacity is 20 tools.
- The standard magazine is cam driven.
- Magazine drive by servo motor is optional, which reduces tool-to-tool change time.
Outstanding Y and Z Axes Design
- The spindle and saddle structure is specially designed for extra high rigidity and stability.
- The saddle is equipped with roller-type linear ways combined with high loading 90 degree arrangement on two axes. This greatly upgrades stability, and make the spindle excellent for high speed cutting.

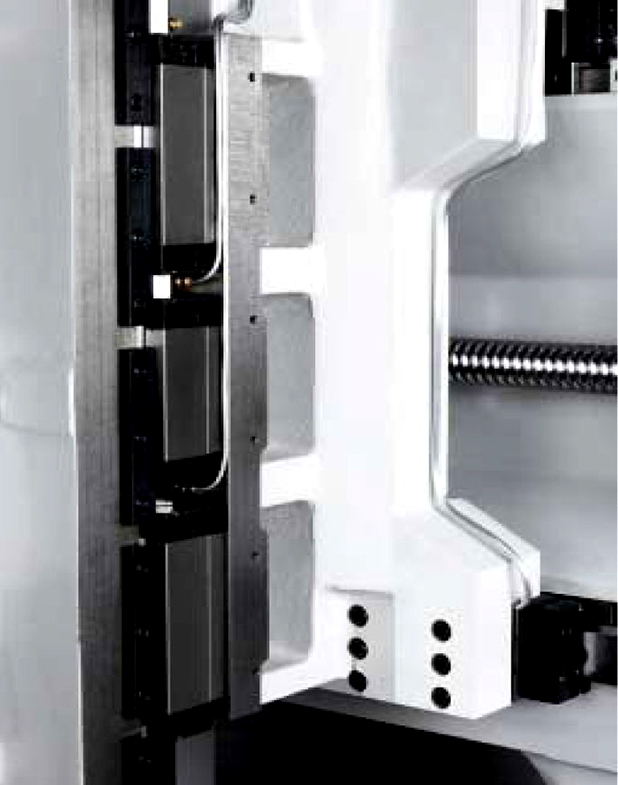

- Three roller-type blocks on linear way with unequal distances arrangement, this assures high stability of cutting even when the spindle runs at the highest speed or at the lowest position.

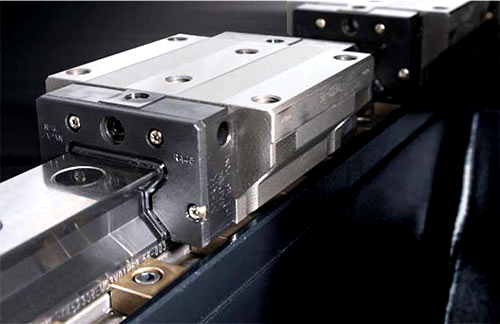

Heavy Duty linear Ways on Three Axes
- Three axes employ high precision roller type linear ways with extra high loading capabilities.
- The linear ways also feature outstanding rigidity, high motion sensitivity and travel accuracy. Maximum motion smoothness and stability

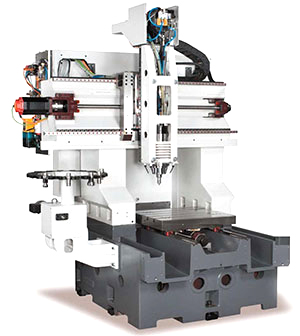

Rigid construction
Highly rigid construction
Specification

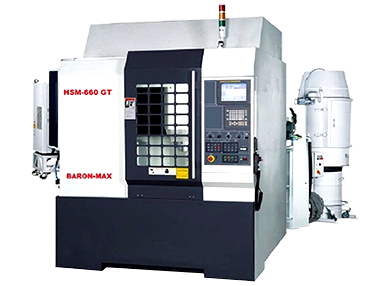

HSM-600GT / HS-800 / HS-1000
| MODEL | UNIT | HSM-600 GT |
HS-800 |
HS-1060 |
| X axis travel | mm(in) | 600 (23.62") | 800 | 1000 |
| Y axis travel | mm(in) | 500 (19.68") | 620 | 600 |
| Z axis travel | mm(in) | 350 (13.77") | 400 | 500 |
| Distance between spindle nose to table | mm(in) | 100 - 450 | 150 - 550 | 150 - 650 |
| Table Dimension (X - Y) | mm(in) | 600 x 550 | 900 x 620 | 1200 x 600 |
| Max. load capacity | Kg (lb) | 500 (1100) | 800 (1760) | 1000 (2200) |
| T slot | mm | 14 x 100 x 4 | 18 x 100 x 5 | 18 x 100 x 5 |
| Taper of spindle nose | HSK-E40 | HSK-E50 | HSK-A63 | |
| Spindle speeds | rpm | 30000 | 20000 | 20000 |
| Drive power (S1 / S6) | Kw | 10/11.5 Kw | 18 / 23 Kw | 11 / 18.5 Kw |
| Torque (S1 / S6) | Nm | 5.4/7.1 Nm | 29 / 36 Nm | 31 / 46 Nm |
| Duty at speed | rpm | 8,000 | 6,000 | 3,000 |
| Lubrication | type | Grease | Grease | Mist |
| Rapid Feed(X/Y/Z) | M/min | 30/30/24 | 36/36/36 | 36/36/36 |
| Cutting feed rate | mm/min | 1-20,000 |
1-30,000 | 1-30,000 |
| X/Y/Z power of servo motor | KW | 2.0 / 2.0 / 2.0 | 5.0 / 5.0 / 5.0 | 8.5./ 8.5 / 8.5 |
| Tool type (DIN 69 893) | Type | HSK-E40 | HSK-A63 | |
| Tool capacity | Pcs | 20Pcs | 20Pcs | 20Pcs |
| Max. tool diameter | mm | O30mm | O60mm | O60mm |
| Max. tool length | mm | 150mm | 200mm | 200mm |
| Max. tool weight | Kg | 8kg | 12kg | 12kg |
| Type | Armless | Armless (Arm-type 30T Opt) | ||
| Tool exchange (T to T) | Sec | 4sec | 4sec | 4sec |
| Pump power of coolant system | W | 800 | 800 | 800 |
| Air pressure request | 1~5000 | 1~10000 | ||
| Machine Power | 32 | 40 | 50 | |
| Packaging size | cm | 300 x 225 x 220 | 380 x 225 x 250 | 400 x 225 x 300 |
| Floor plan | cm | 210 x 190 | 275 x 215 | 310 x 260 |
| Machine Weight | 5,200 | 8,200 | 10,000 | |
| Positioning accuracy (VDI 3441) P | JISB6338 ±0.005/300 , VDI 3441 P0.025 | |||
| Repeatability accuracy (VDI 3441) Ps max | 0.002 | |||
| Linear scale precision | ±0.005mm | ±0.005mm | ±0.005mm | |
| Control system | SIEMENS 828D / Mitsubishi M70
|
|||
* Specifications are subject to change without notice
