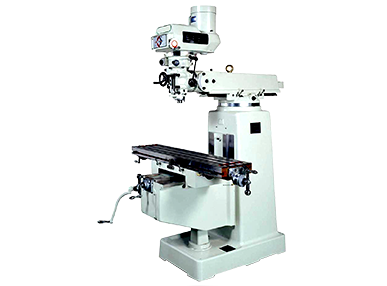

Feature
- 3 HP S/motor, Variable Speed 70-4200 rpm (60Hz)
- R-8 or ISO 30 S/Taper, (#40 Option)
- Head swivel: ±90°, Head tilt: ±45°(Knuckle Joint design)
- 10" x 50" Table, (54" option)
- (X-Y-Z-Quill) Travel: 900 x 426 x 446 x 127 mm
- Hardened and Ground work table
- Hardened and Ground Slide way on X-Y-Z axes
- Square Ways on Y for Rigid and Dovetail Guides on X & Z for Accuracy
- Double lock on Ram, Table, and Knee
- Precision Internal-Ground Quill Bore
- Class 7 Spindle Bearings
- Chromed & Ground Quill
- Double Brass-Nut Backlash
- Compensated on X and Y Lead Screw
- Turcite "B" lining on X and Y axes
Specification
| KM-3V | |
| VERTICAL MAIN SPINDLE | |
| Working surface of table | 254 x 1270 mm |
| X-Y-Z Travel (manual) | 860 x 410 x 450 mm |
| X-Y-Z Travel (power feed) | 760 x 410 x 450 mm |
| Over ram Travel | 520 mm |
| T-slots (width x number) | 16 mm x 3 T |
| Number of Spindle Speeds | Variable speed |
| Range of spindle speed | 4200 rpm/60Hz, 3600 rpm/50Hz, |
| Spindle Quill diameter | 86 mm |
| Spindle Quill travel | 127 mm |
| Down feeds of Spindle (per/rev./mm) | 0.04, 0.08, 0.15 mm/rev |
| Taper of spindle nose | R-8 or ISO 30 (ISO 40 Option) |
| Spindle motor | 3HP |
| Motor | 3Ph, 230/380/460V Pre-wired 230V |
Over swivel on turrt |
360° |
| Head tilt; right-to-left (each way) | 90°(R & L) |
| Head tilt up-and-down (each way) | +/- 45° |
| Maxi. Weight of Workpiece (kgs.) | 450 kg |
| Weight (approx) Kgs | 1360 |
* Specifications are subject to change without notice.
