Feature
- Extra wide bed with flat way and Vee-way, induction hardened and precision ground to HRC 50.
- Turcite-B anti-friction coating on saddle and cross slide for improved accuracy & wear
- Precision hand scraped for all mating sliding surfaces and gibes.
- Hardened & Ground ball-screw with preloaded double nuts, fitted on 60°Xangular contact bearing.
- Powerful AC Vector spindle drive, provide high power for Constant Surface Speed Cutting.
- Large bore heavy duty spindle mounted on precision taper roller bearing for heavy cutting.
- Headstock with three automatic change-over speed-ranges with fully programmable spindle speeds.
- Heavy duty manual tail-stock with safety switch.
- AC Servo axes motors and drives provided high Performance.
- Dual electronic hand wheels allowing unrestricted manual operation.
- Automatic lubrication to all sliding surfaces and axes ball-screws.
- Flood coolant system and Halogen work light are as standard.
- All electric component are built-in an enclosure cabinet and main disconnect switch.
- Fully enclosed guarding with interlocked sliding doors access to CE standard.
- Every machine before shipping is inspected by Laser calibrated and cutting & coolant Testing and Undergoes a rigorous 30 hours non-stop running.
- Integrated FAGOR 8055i TC Control with 11" Color TFT display. Simple as a DRO, Powerful as a CNC,
Rigid construction
Specification

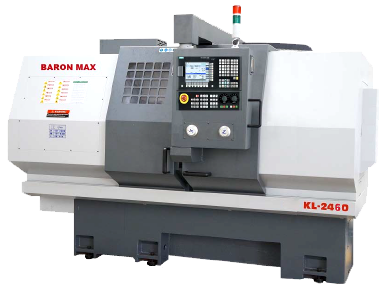

KL-2440 / KL-2460 / KL-2480
KL-2440 |
KL-2460 |
KL-2480 |
|||
| CAPACITY | |||||
| Height of centers | 315 mm (12.2") | ||||
| Swing over bed | 630 mm (24.8") | ||||
| Swing over cross slide | 400 mm (15.7") | ||||
| Distance between center | 1000mm | 1500mm | 2000mm | ||
| Width of bed | 350 mm (14") | ||||
| SADDLE | |||||
| Longitudinal travel (Z) | 750mm | 1250mm | 1750mm | ||
| Cross slide travel (X) | 325 mm (12.79") | ||||
| HEADSTOCK | |||||
| Spindle Nose | ISO D1-8 (Std.), ISO A1-11 (Opt.) | ||||
| Spindle bored (standard) | Ø 85 mm (3-1/8") | ||||
| Spindle bored (optional) | Ø 105 mm (4") or Ø 155 mm (6") | ||||
| Taper of S/Nose & center | MT No.7 x No.5 | ||||
| 3-Jaw scroll chuck (Option) | Ø 250mm for D1-8, Ø 300 mm for A1-11 | ||||
| Hydraulic Power chuck (Opt.) | Ø 250 mm for D1- 8, Ø 300 mm for A1-11 | ||||
| Bar capacity (Power chuck) | Ø 45 mm for D1-6 of 8" chuck, Ø 75 mm for D1-8 of 10" chuck, Ø 91 mm for A1-11 of Ø12" chuck | ||||
| Range of spindle speeds | 3 Rang Gears Auto Shifting | ||||
| Spindle speed (variable) | A1-11: (Option) 12" chuck H: 1500 - 331 rpm M: 330 - 93 rpm L: 92 - 20 rpm |
||||
| INDEXING TURRET (OPTIONAL) | |||||
| Turret tool station | 8 station | ||||
| Standard O.D. tool size | 25 mm (1") | ||||
| I.D. tool size (Max.) | 25 mm (1") | ||||
| TAILSTOCK | |||||
| Tailstock quill travel | 180 mm (7.08") | ||||
| Tailstock quill diameter | 75 mm (3") | ||||
| Tailstock quill taper | No.5 MT | ||||
| MOTOR | |||||
| Spindle drive motor | 15 HP: Std. (20 HP: Opt.) | ||||
| Feed Motor torque (Z-X) | 12 Nm (Z) / 6 Nm (X) Nm | ||||
| Coolant pump | 1/8 HP, (1/4 HP: up to 2000 mm center distance) | ||||
| Rapid traverse (Z-X) | 8,000 mm/min (315 ips) | ||||
| Cutting federate (Z-X) | 1-4000 mm/min (0-157 ips) | ||||
| ACCURACY | |||||
| Positioning | ±0.010/300 mm (±0.0004/12") | ||||
| Positioning repeatability | ±0.005/300 mm (±0.0002/12") | ||||
| Power required | 20 KVA | ||||
| Approx. Machine weight (kg) | 3200 | 3500 | 3800 | ||
