Feature
- Powerful 10 hp or 15 HP spindle motor
- Rigidity Cartridge Spindle, BT40/ 8,000 rpm speed
- Hardened & Ground with turcite-B coating guide way
- C3 Double nut precision ball screws hardened & ground for high accuracy and long lasting
- FC30 Meehanite Casting main frame with annealed & stress relieved for long term reliability
- 100% Laser & ballbar tested for positioning accuracy & repeatability
- Box ways on Y & Z axis for maximum rigidity & stability
- 16 stations automatic tool change as an option
- Telescopic steel way cover on all X/Y/Z axes
- Base chip tray and rear splash guard
- Table Mounted chip guard w/Two sliding doors
- Coolant System
- Central lubrication system
- Built-in Quartz work light
Specification

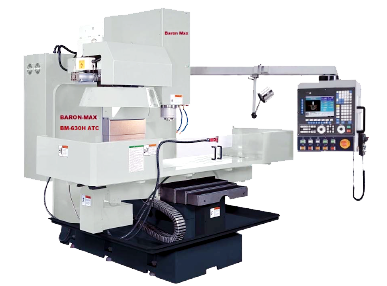

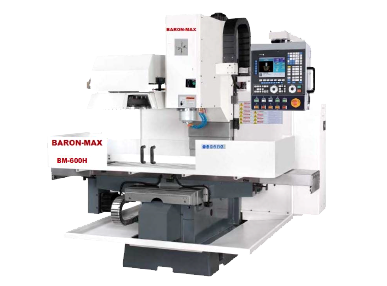

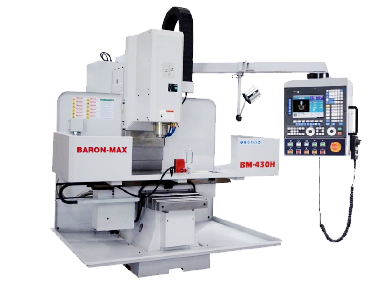

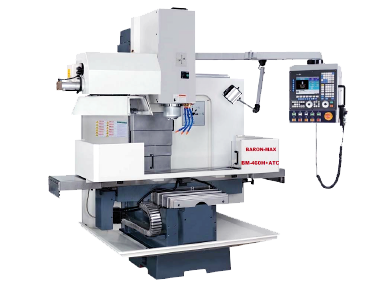

BM-430H / BM-460H / BM-560H / BM-600H / BM-630H
BM-430H |
BM-460H |
BM-560H |
BM-600H |
BM-630H |
|
| TRAVEL | |||||
| Longitudinal travel (X-axis) | 800mm | 1000mm | 1300mm | 1500 mm | 1500 mm |
| Cross travel (Y-axis) | 400 mm | 510mm | 630 mm | 850mm | |
| Vertical travel (Z-axis) | 450 mm | 510mm | 610 mm | 700mm | |
| Spindle nose to table | 100-550 mm | 100-600 | 100-700 mm | 100-800mm | |
| Spindle center to column | 450 mm | 510mm | 650 mm | 900mm | |
| TABLE | |||||
| Table size (mm) | 355*1270 | 400*1372 | 420*x1600 | 450*x1800 | 610*x1854 |
| T-slots (W x No. x P) | 16 x 3 x 64 mm | 16 x 5 x 65 mm | 18 x 5 x125mm | ||
| Max. Table load capa | 400 KG | 800 KGs | 1000 KGs | 1500 KGs | |
| SPINDLE | |||||
| Spindle Motor | 7.5 HP | 10 HP (Std) , 15 HP (Opt) | |||
| Spindle speed (STD) | 60 - V 8,000 rpm | 60 - V 8000 rpm, 12,000 rpm (Option) | |||
| Spindle Taper | BT# 40(STD.), CT#40 or DIN 69871A(Option) | ||||
| Rapid traverse (X-Y-Z) | 15,000 mm/mini | 12,000 mm/min | |||
| Cutting feedrate (X-Y-Z) | 1 - 4000 mm/min | ||||
| ACCURACY | |||||
| Positioning | ± 0.010 mm (± 0.0004") | ||||
| Repeatability | ± 0.005 mm (± 0.0002") | ||||
| AUTOMATIC TOOL CHANGER: Carousel Type for H-Head only - Optional | |||||
| No. of tools. | 16 Pockets | 16 / 20 Pockets | |||
| Tool selection | By address code, Random/bi-directional rotation | ||||
| Pull stud | MAS 403-P40T (45°) or PS-CAT40 (45°) | ||||
| Max. Tool (Dia. x length) | Ø80mm (3.2") x 250 mm (10") | ||||
| Max. Tool weight | 7 Kgs | ||||
| Tool change time | 7 sec (Tool to Tool) | ||||
| Floor space (L*W*H) (cm) | 280x240x260 / 300x250x280 / 320X260X280 / 350X280X300 | ||||
| Packing size | 230x260x260 / 230x280x260 / 230x300x265 / 230x420x260 | ||||
| Power required | 15 KVA | 20 KVA | |||
| Air required | 6 kg/cm (85 psi) | ||||
| Machine weight (N.W) | 2,700 Kg | 3,200 Kg | 4,000 Kg | 4,300 kgs | 5,200 Kg |
* Specifications are subject to change without notice
