Feature
Product Features
High rigid Cartridge Belt Drive Spind
High rigid Cartridge Belt Drive Spind
High rigid Cartridge Belt Drive Spind
Largest and rigidity column
the ballscrews and linear ways are lubricated automatically by timer controlled oil injection
the ballscrews and linear ways are lubricated automatically by timer controlled oil injection
24 Tools Swing Arm type ATC
A screw type auger is provided as a standard feature
Double-anchored ballscrews with twin pre-loaded ball nut
Double-anchored ballscrews with twin pre-loaded ball nut
Double-anchored ballscrews with twin pre-loaded ball nut
Double-anchored ballscrews with twin pre-loaded ball nut

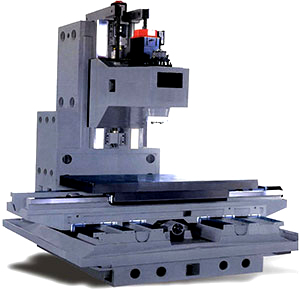

Rigid construction
Hardened and ground box ways for X-Y-Z axes
Specification

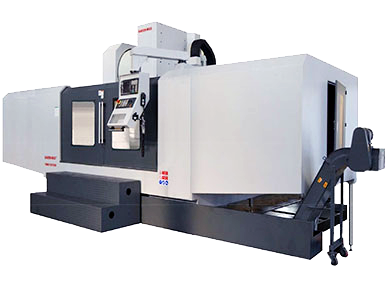

VM-30108
VM- 30108 |
|
| MACHINING ENVELOPE | |
| Table Travel (X Axis) | 3000 mm |
| Saddle Travel (Y Axis) | 1000 mm |
| Head Travel (Z Axis) | 800 / 1000 mm |
| Spindle center to column | 1080mm |
| Spindle nose to table | 200-1000 mm |
| Work Table | |
| Table Size overall (mm) | 3000*1000 |
| Table loading capacity | 3000 kg |
| T-slots (width x No x patch) | 22x5x180 mm |
| Spindle | |
| Spindle Taper | BT# 40(STD.), DIN-69871A (Opt.), BT 50 (Option) BT# 50 |
CNC Control System |
SIEMENS 802D sl or FAGOR 8055i MC (Std) Options - Siemens 828d, FAGOR 8060i ,or Mitsubishi 70 |
| Spindle speeds (belted) | 8,000 (Std), (Option /12000, or 15000rpm) 6000rpm |
| Main motor (S6- 60%) | 12 /16 KW (20hp) std 22/30 KW (40hp) - Option 22/30 KW |
| Axes Transmission | |
| X Y Z rapid feed | 10 / 12/ 10 m/min |
| X Y Z feed rate | 6 m/min |
| Feed Motor torque (X-Y-Z) | 16 / 16 / 16 Nm (Siemens / FAGOR), 30 / 30 / 30 Nm (for VMC-30108) |
| Accuracy | |
| Positioning | ±0.005 (±0.0002") |
| Positioning repeatability | ±0.003 mm (±0.0001") |
| Automatic Tool changer | |
| Tool shank | No. 50 |
| Standard Carousel capacity | 24 |
| Side-Mount Swing Arm Option | 24 / 40 |
| Tool selection | By address code, Random / bi-directional rotation |
| Pull stud | MAS 403-P40T (45°),CT40 (45°),DIN 69872 B (45) |
| Max. Tool diameter | Ø80 mm (Carousel type), ±76 mm (Arm type), |
| Max. Tool weight | 6 Kg |
| Max. Tool length | 300 mm (12") |
| Tool change time | |
| Chip-to-chip/Tool-to-tool | 7 Seconds for Carousel type, (3 Seconds for Arm Type Option) |
| Coolant pump motor | 3/4 HP , 1-1/2 HP (Option) |
| Air required | kg/cm (85 psi) |
| Coolant and Chip Management | |
| Swarf removal | Chip auger standard, Chip Conveyor option |
| Coolant Tank Capacity | 320 L |
| Wash Down | Option |
| Wash Gun | Standard |
| Air Gun | Standard |
| Cutter air blast | Standard |
| Coolant Through Spindle | Option |
| Slides | |
| Way Construction (X, Y, Z) | 6th boxway |
| Machine Dimensions (W x D) | 610 x 350 cm |
| Machine height | 320 cm |
| Machine weight (Approx.) kgs | 21,000 |
* Specifications are subject to change at the manufacturers discursion
