Feature
- Extra wide bed with flat way and Vee-way, induction hardened and precision ground to HRC 50.
- Turcite-B anti-friction coating on saddle and cross slide for improved accuracy & wear
- Precision hand scraped for all mating sliding surfaces and gibes.
- Hardened & Ground ball-screw with preloaded double nuts, fitted on 60 ° Xangular contact bearing.
- Powerful AC Vector spindle drive, provide high power for Constant Surface Speed Cutting.
- Large bore heavy duty spindle mounted on precision taper roller bearing for heavy cutting.
- Headstock with three automatic change-over speed-ranges with fully programmable spindle speeds.
- Heavy duty manual tail-stock with safety switch.
- AC Servo axes motors and drives provided high Performance.
- Dual electronic hand wheels allowing unrestricted manual operation.
- Automatic lubrication to all sliding surfaces and axes ball-screws.
- Flood coolant system and Halogen work light are as standard.
- All electric component are built-in an enclosure cabinet and main disconnect switch.
- Fully enclosed guarding with interlocked sliding doors access to CE standard.
- Every machine before shipping is inspected by Laser calibrated and cutting & coolant Testing and Undergoes a rigorous 30 hours non-stop running.
- Integrated FAGOR 8055i TC Control with 11" Color TFT display. Simple as a DRO, Powerful as a CNC,
Rigid construction
Specification

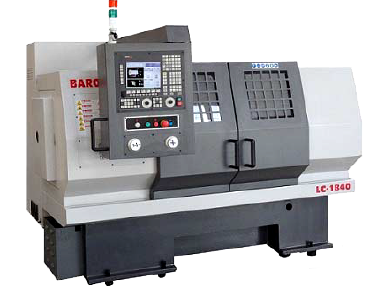

LC-1840
| CAPACITY | |
| Height of centers | 230 mm |
| Swing over bed | 460 mm |
| Swing over cross slide | 230 mm |
| Distance between center | 1000 mm |
| Width of bed | 300 mm |
| HEADSTOCK | |
| Spindle Nose | A1-6 |
| Spindle bored (standard) | Ø 56 mm (2-1/8") |
| Spindle bored (optional) | ---- |
| Taper of S/Nose & center | MT No.6 x No.4 for D1-6, MT No.7 x No.5 for D1-8 |
| 3-Jaw scroll chuck (Option) | Ø 200 mm (8") for D1-6, Ø 250 mm (10") for D1-8 |
| Hydraulic Power chuck (Opt.) | Ø 200 mm (8") for D1-6, Ø 250 mm (10") for D1-8 |
| Bar capacity (Power chuck) | Ø 45 mm for D1-6 of 8" chuck, Ø 75 mm for D1-8 of 10" chuck, Ø 91 mm for A1-11 of Ø12" chuck |
| Range of spindle speeds | 2 Gears |
| Spindle speed (variable) | A1-6 & D1-6: 8" chuck H: 3000-601 L : 600 - 60 |
| SADDLE | |
| Longitudinal travel (Z) | 750 mm |
| Cross slide travel (X) | 280 mm |
| TAILSTOCK | |
| Tailstock quill travel | 160 mm |
| Tailstock quill diameter | 52 mm |
| Tailstock quill taper | No.4 MT |
| INDEXING TURRET (OPTIONAL) | |
| Turret tool station | 8 station |
| Standard O.D. tool size | 20 mm (3/4") |
| I.D. tool size (Max.) | 20 mm (3/4") |
| MOTOR | |
| Spindle drive motor | 7.5 HP |
| Feed Motor torque (Z-X) | 12 Nm (Z) / 6 Nm (X) Nm |
| Coolant pump | 1/8 HP, (1/4 HP: up to 2000 mm center distance) |
| Rapid traverse (Z-X) | 8,000 mm/min (315 ips) |
| Cutting federate (Z-X) | 1-4000 mm/min (0-157 ips) |
| ACCURACY | |
| Positioning | ±0.010/300 mm (±0.0004/12") |
| Positioning repeatability | ±0.005/300 mm (±0.0002/12") |
| Power required | 16 KVA |
| Approx. Machine weight (kg) | 2400 |
